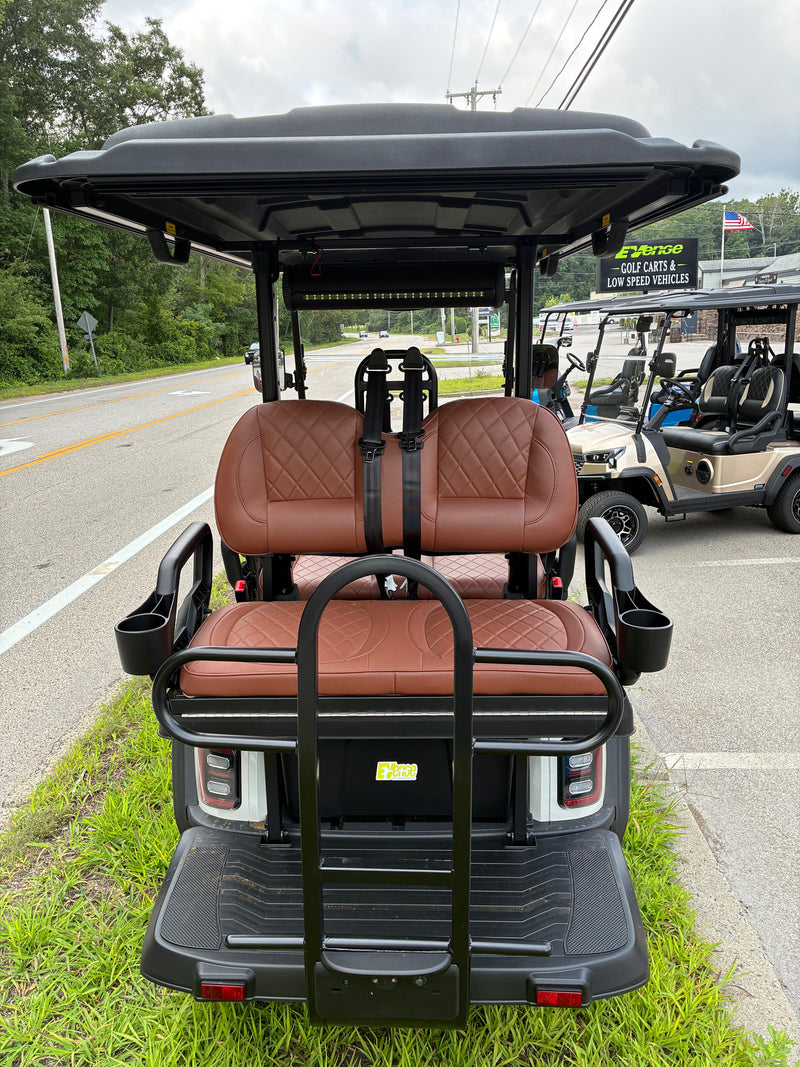

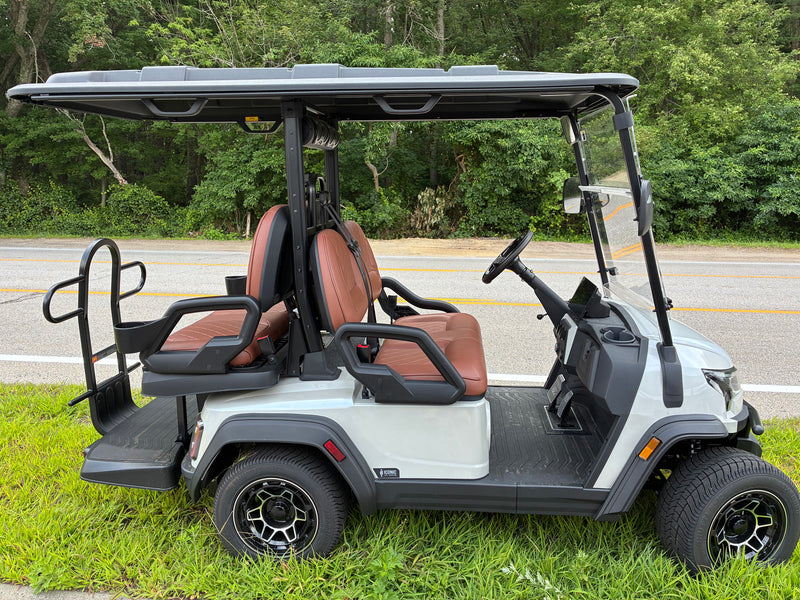

ICON i40X
Product Description:
The ICON i40X is a four-passenger electric golf cart designed for neighborhood cruising, resort exploring, golf course outings, and recreational use. It features spacious seating, modern styling, and comfort-focused features for a smooth, enjoyable ride.
Standard Configuration:
Non-lifted
Lift Option:
The cart can be lifted upon request. Additional labor charges apply, along with swapping the tires to accommodate the lifted configuration.
Key Specifications
Passenger Capacity: 4 People
Curb Weight: 1,300 lbs
Gross Vehicle Weight Rating: 2,020 lbs
Maximum Rear Cargo Weight: 300 lbs
Overall Dimensions: 113.98" L × 47.24" W × 75.28" H
Ground Clearance: 6.6"
Available Metallic Colors
White
Silver
Champagne
Raven Black
Sangria Red
Forest Green
Electric Blue
Electrical System
Controller: 450A ICON Controller
Motor: 48V ICON 5kW 3-Phase High Torque Motor
Charger: ICON 48V Onboard Charging System with Body-Mounted Charge Indicator
Battery: 51V / 105Ah Lithium Eco Battery
Battery Warranty: EcoBattery Limited Lifetime Warranty
Short Product Description
ICON i40X | 4-Passenger Electric Golf Cart
The ICON i40X combines modern styling, spacious four-passenger seating, and a powerful 48V electric drivetrain. With a 5kW high-torque motor, lithium battery, onboard charging system, and multiple metallic color options, it is built for comfortable neighborhood cruising, golf course use, and everyday adventures.
